A fully self-hosted SOC running on a Fedora 42 Linux mini PC. Detects network intrusions, monitors endpoints in real time, and delivers threat intelligence — built entirely on open-source tools used in enterprise security operations.

VIEW_REPO → READ_DOCS

[ SYSTEM_TELEMETRY // LIVE ]

Total Cost

Endpoints

1 node

Tools Deployed

Uptime

24/7

HOST intel-nuc

OS Fedora Linux 42 // x86_64

WAZUH_MGR v4.9 // RUNNING

SURICATA IDS // ACTIVE

AGENT_STATUS ThinkPad T14 // CONNECTED

SSH_PORT customer port number // KEY_AUTH_ONLY

INDEXER OpenSearch // 600+ docs

Technology Stack

The Full Stack

Every tool is free and open-source — the same stack deployed in enterprise SOCs worldwide.

[ LAYER: HOST_DETECTION ] HIDS + SIEM

Wazuh

// HIDS + SIEM Engine

Host-based intrusion detection across both machines. Monitors logins, file integrity, running processes, and auto-maps every alert to MITRE ATT&CK and compliance frameworks.

● ACTIVE Intel NUC · v4.9

[ LAYER: NETWORK_IDS ] SIGNATURE ENGINE

Suricata

// Network IDS

Inspects all traffic using 40,000+ Emerging Threats community rules plus custom local rulesets. Outputs structured JSON for consumption by the Python alert engine.

● ACTIVE NUC interface · ET Rules

[ LAYER: ALERT_PIPELINE ] CUSTOM ENGINE

Python

// Alert Engine

Real-time log tailer that filters by severity, enriches critical alerts with VirusTotal IP reputation data, and fires Telegram push notifications within seconds of detection.

● RUNNING systemd service

[ LAYER: NOTIFICATION ] PUSH DELIVERY

// Alert Delivery

Real-time push notifications to both operator phones within seconds. Each alert includes severity, source IP, destination, MITRE technique ID, and VirusTotal score.

● BOT ACTIVE Dual recipients

[ LAYER: INDEXER ] SEARCH + STORAGE

OpenSearch

// Alert Index

Wazuh's indexer stores every alert in a fully searchable document store. Filebeat ships alerts continuously from log files for historical analysis and dashboard visualization.

● INDEXED 600+ documents

[ LAYER: BASE_OS ] HARDENED SERVER

Fedora 42

// Base OS

Always-on Intel NUC mini PC. Hardened with key-based SSH on custom port , root login disabled, firewalld rules active, and automatic security updates enabled.

● HARDENED NUC + ThinkPad T14

System Design

Architecture

Two machines, one centralized SOC. Network and host detection working in parallel.

[ TOPOLOGY // DATA FLOW ] SVG_RENDER v2.0

Traffic hits Suricata

All NUC network traffic inspected against 40,000+ Emerging Threats rules plus custom local rulesets.

Wazuh catches host events

ThinkPad agent ships every login, sudo command, and file change to the NUC manager in real time.

Alerts indexed

Filebeat ships into OpenSearch — stored, searchable, and tagged with MITRE ATT&CK techniques.

Python filters and enriches

Alert engine reads JSON log stream, drops low-severity noise, queries VirusTotal on suspicious IPs.

Telegram delivers instantly

Critical alerts reach both phones within seconds — with context, severity, and threat intelligence.

Contributors

The Team

Two roles, clearly divided — infrastructure and detection running in parallel.

[ ROLE: INFRASTRUCTURE_ENGINEER // NODE_A ]

Operator

Kathlyn

@kat2120 · Infrastructure & Operations

GITHUB // LINKEDIN

Fedora 42 server setup and system hardening
Wazuh HIDS — manager, indexer, dashboard
SSL certificate bootstrapping and PKI config
SSH hardening — custom port, key-based auth
Firewall configuration with firewalld
Filebeat pipeline to OpenSearch
Wazuh agent deployment on ThinkPad endpoint

[ ROLE: DETECTION_ENGINEER // NODE_B ]

Operator

Richard

Detection & Response

GITHUB // LINKEDIN

Suricata IDS installation and performance tuning
Custom Suricata detection rule authoring
Python alert engine development
VirusTotal API integration and enrichment
Telegram bot and notification formatting
Malware sample analysis and write-ups
MITRE ATT&CK technique mapping

Real Experience

Challenges Solved

We didn't follow a tutorial. Here's what actually broke and how we fixed it.

[ SUBSYSTEM: SSL_PKI // WAZUH_CERTS ]

SSL Certificate Bootstrapping

The all-in-one installer exited early because the manager was already partially installed, leaving the indexer, dashboard, and Filebeat without SSL certificates. Diagnosed from OpenSearch error logs, ran wazuh-certs-tool.sh manually, and placed each cert with exact ownership and permissions.

// LESSON: Always run the Wazuh installer on a completely clean system.

[ SUBSYSTEM: CONFIG_PARSING // XML_VALIDATION ]

ossec.conf XML Corruption

Config file had two issues — a mismatched closing tag on line 26 and a duplicate <ossec_config> root element inside the cluster block with a missing closing tag. Used Python's XML parser to identify exact line numbers, repaired the file with targeted sed and Python scripts.

// LESSON: Always validate XML config files before restarting services. Always keep a backup.

[ SUBSYSTEM: TLS // CERTIFICATE_BINDING ]

Filebeat Certificate Mismatch

Filebeat failed with x509: certificate valid for 192.168.1.33, not 127.0.0.1. SSL certificate generated for the server's actual IP but the Filebeat config pointed to localhost. Diagnosed from reading the exact error message.

// LESSON: Never use 127.0.0.1 when certs are generated for a specific IP address.

[ SUBSYSTEM: OPENSEARCH // INDEX_MAPPING ]

OpenSearch Field Mapping Conflicts

Dashboard panels threw illegal_argument_exception because fields like agent.name were mapped as text instead of keyword type, preventing aggregation. Existing indices can't be remapped — fixed by applying a correct index template so all future daily indices are created with proper field types.

// LESSON: Apply index templates before data starts flowing, not after.

Screenshot Documentation

Dashboard Views

Live captures from the Wazuh dashboard, OpenSearch, and Suricata alert feeds. Replace placeholders with your actual screenshots.

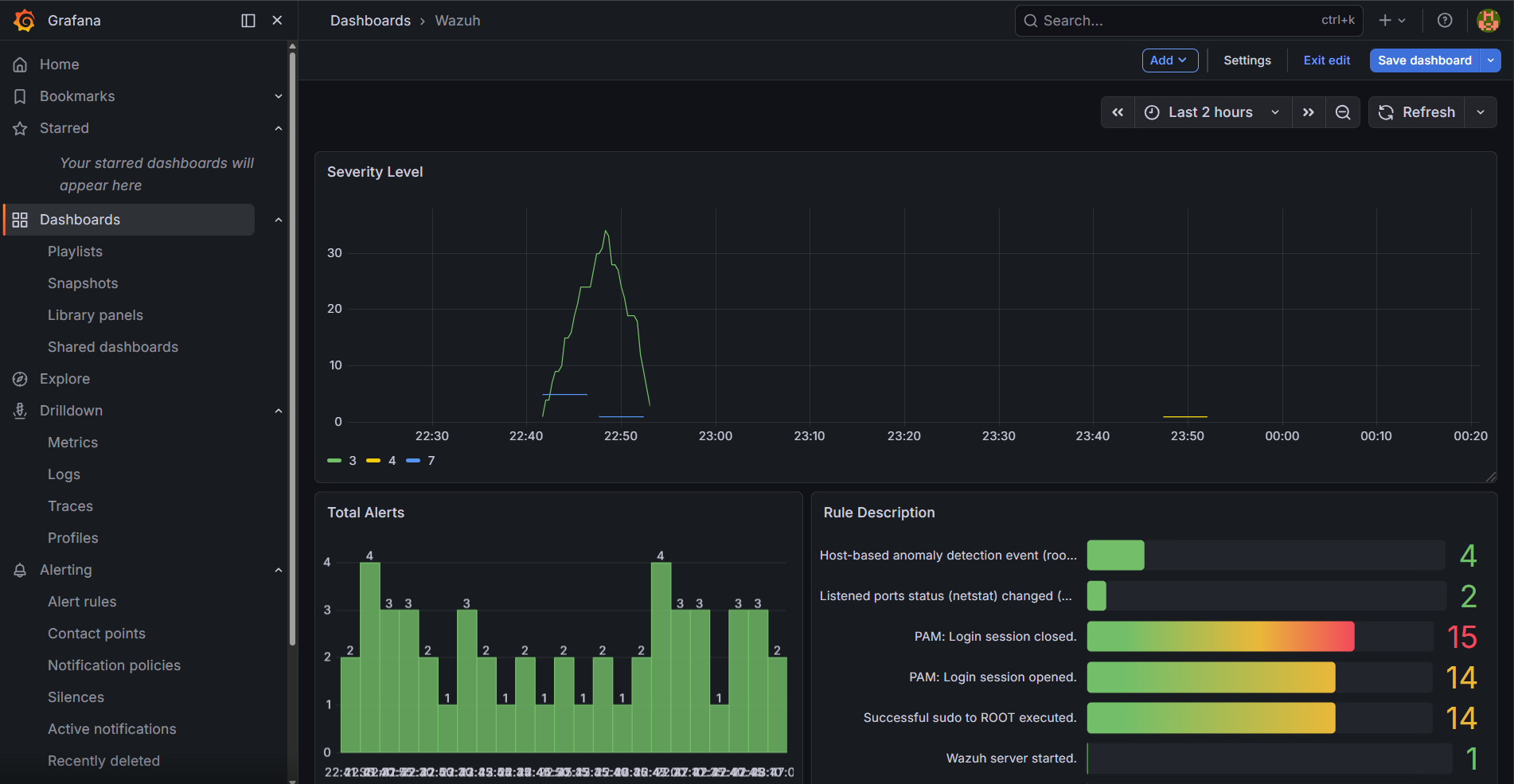

[ WAZUH // SECURITY_EVENTS_OVERVIEW ] IMG-001

-->

Security Events Overview

Wazuh dashboard main view — alert volume over time, severity distribution, top agents, and MITRE ATT&CK coverage heatmap.

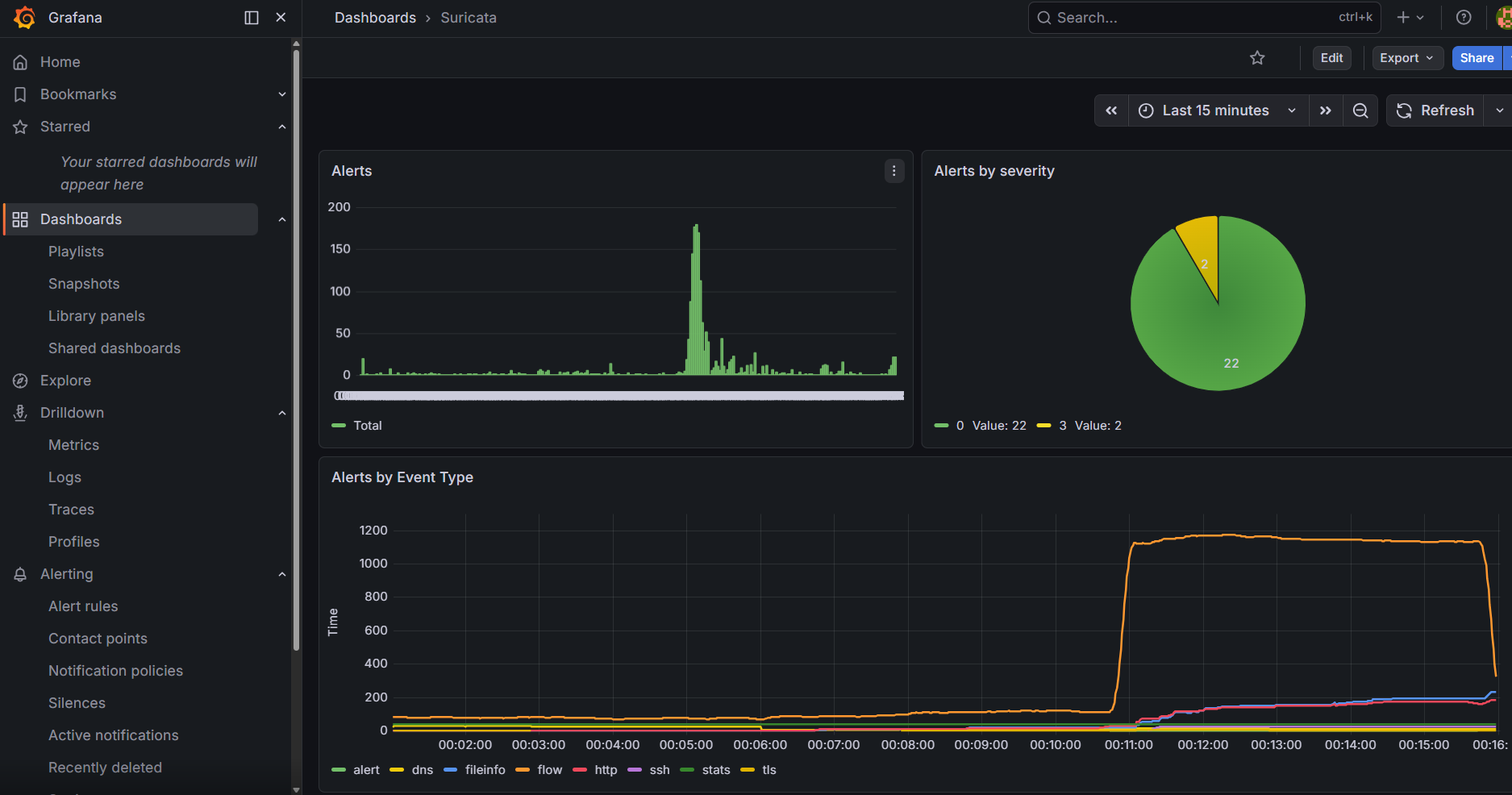

[ SURICATA // NETWORK_ALERT_FEED ] IMG-003

-->

Suricata Alert Feed

Real-time network IDS alert stream — rule signatures, source/destination IPs, protocol, and severity for traffic flagged against the Emerging Threats ruleset.

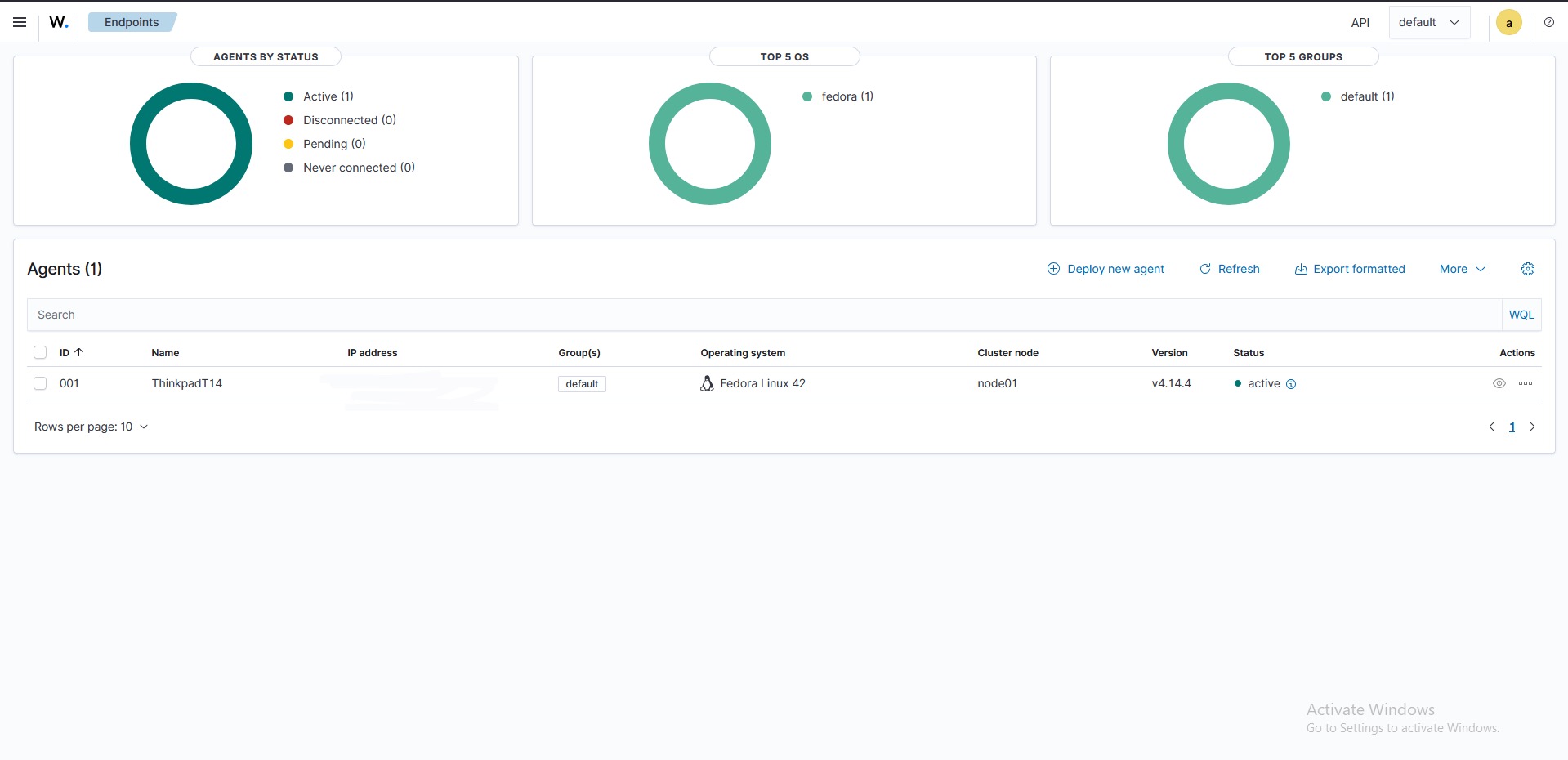

[ WAZUH // AGENT_STATUS_PANEL ] IMG-005

-->

Agent Status Panel

Wazuh agent management view showing ThinkPad T14 connection status, last keepalive, OS version, agent version, and active policy groups.

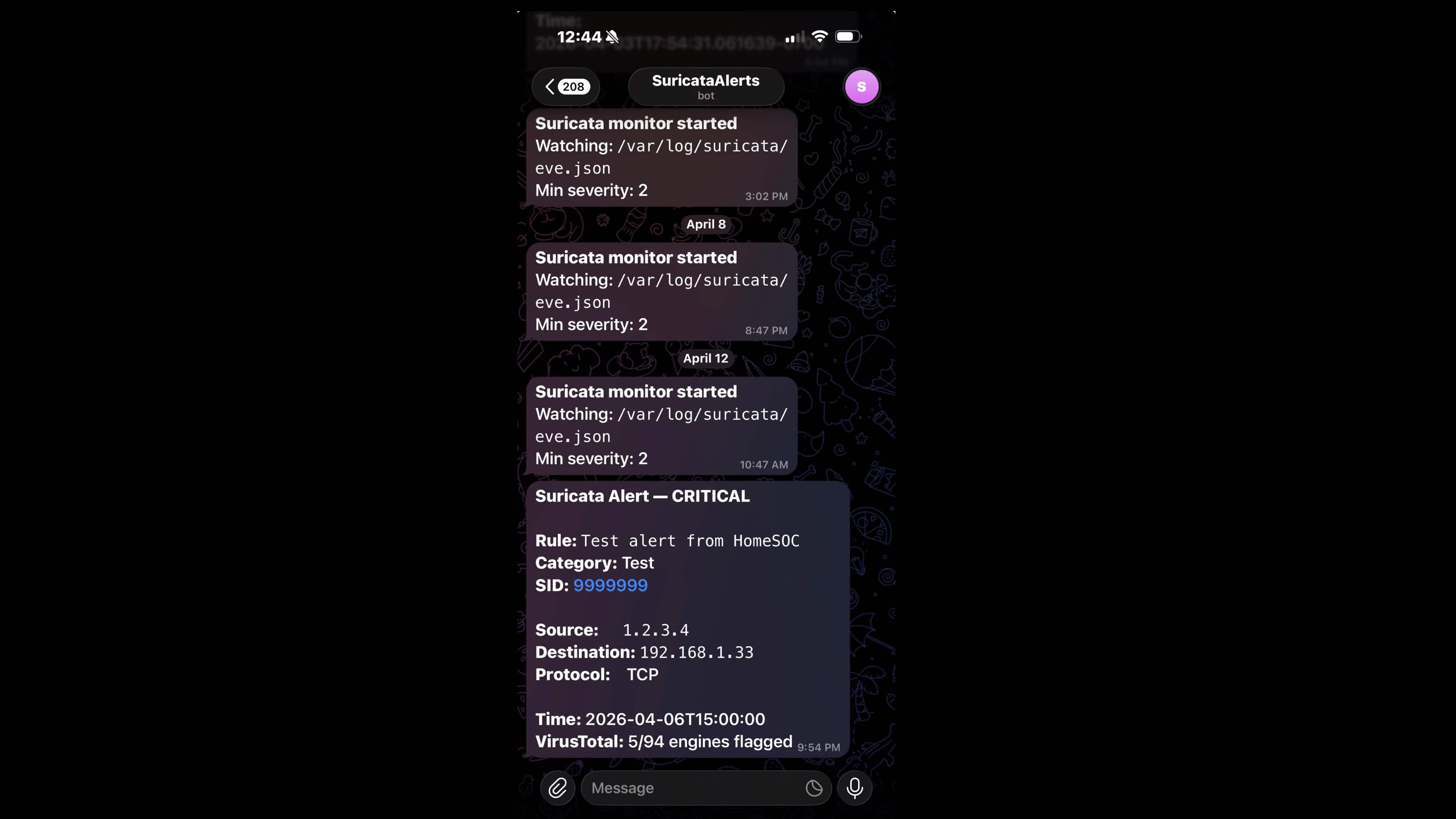

[ TELEGRAM // ALERT_NOTIFICATION ] IMG-006

-->

Telegram Alert Notification

Push notification sample from the Python alert engine — severity level, rule ID, source IP, MITRE technique, and VirusTotal reputation score delivered in real time.
